Product Description

This unique design integrates the GPON and XGPON into an SFP+ structure. The Combo PON transceiver is designed for FTTx OLT with CW mode downstream 2.488/9.953Gbps and burst mode upstream 1.244/2.488Gbps. The products meet ITU-T G984.2 and G987.2 requirements and are compliant to RoHS 2.0.


Product Features

?  Integrated GPON and XGPON OLT

?  1577nm DML Laser plus MRR to replace 1577nm EML

?  Hot-Pluggable SFP+ form factor

?  CW Mode Downstream 2.488/9.953Gbps

?  Burst Mode Upstream 1.244/2.488Gbps

?  Support Classes  D1/D2/C+/N1/N2a

?  Commercial Temperature Range

?  RoHS 2.0 Compliant




Application

?  FTTx

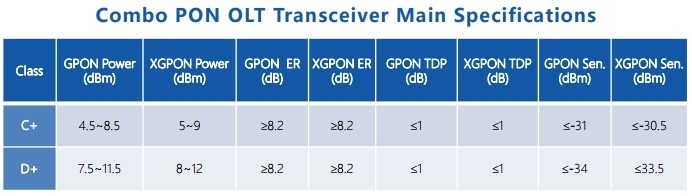

Main Specifications


Data download
